FEATURES
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP
PHYSICAL SPECIFICATION
- Weight (kg) : 4.93 kg
- Dimensions (WxDxH) mm : 440 x 310 x 43.2 mm
TECHNICAL SPECS
-

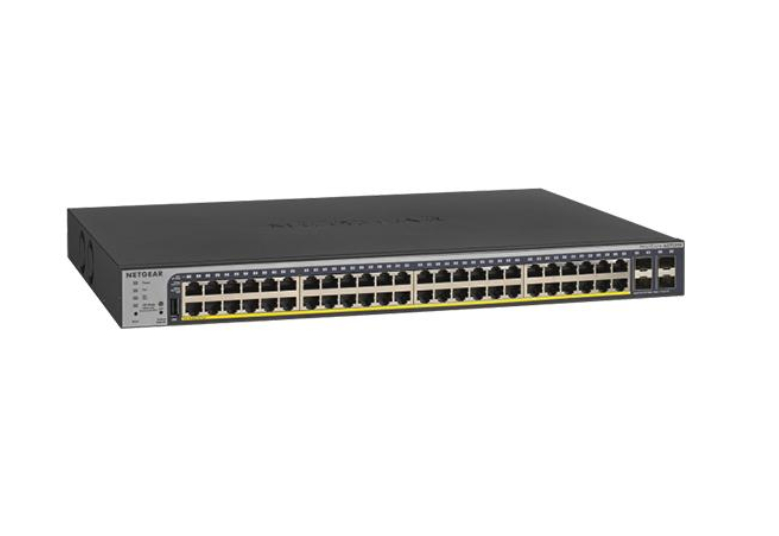

- Model Description : 48-Port Gigabit PoE+ Smart Managed Pro Switch w/ optional Remote/Cloud Management and 4 SFP Ports (GS752TPv2)
- Warranty : Lifetime
- Management : Insight Remote/Cloud Manageable with 1-Year Insight subscription included
- 10/100Mbps ports : N/A
- Gigabit ports : 48
- SFP ports : 4
- Number of PoE ports : 48
- PoE+ (802.3at) : 48
- Total PoE Power budget (Watts) : 380W
- Max MAC entries : 16K
- Buffer size : 1.5MB
- VLAN (Number Supported) : 256
- VLAN routing : Yes
- Dynamic VLAN assignment : Yes
- MLD Snooping : Yes
- Static route : 32
- Host ARP table : 512
- EEE : Yes
- DoS Prevention : Yes
- Internal/External : Internal 100-240VAC 50-60Hz
- Max consumption (Watts) : 446W
- FAN : 2
- Acoustic Noise Level @25C (dBA) : 36.94
- Operating Temperature : 0° to 50° C
- MTBF : 1,737,411 hours
